When the engine runs strong but the outlets give you little or nothing, the stator is a prime suspect. A multimeter and a few minutes will tell you whether it has failed.
The 30-second answer: To test a generator stator, shut the engine off, disconnect the stator leads, and measure each winding with a multimeter on its lowest ohms range. Every winding should show a small, steady resistance and nothing to ground. An open reading, a reading to the frame, or a burnt smell means the stator has failed. Replacements cost $60 to $300.
The short version
- Test the capacitor, AVR, and brushes first. The stator is the least likely part to fail and the most expensive to replace.
- Disconnect everything before testing. Meter readings on a connected circuit are meaningless.
- You’re checking three things: continuity, matching windings, and no connection to ground.
- A basic meter can’t find a shorted turn inside a winding, so a good reading doesn’t clear the stator completely.
When Should You Test a Generator Stator?
The stator is the stationary set of copper windings inside the generator end. The engine spins a magnetic rotor inside it, and that moving magnetic field induces the current that eventually comes out your outlets. When the engine runs strong and the outlets give you nothing, or very low voltage, the fault is in the electrical chain: capacitor, AVR, brushes, rotor, or stator. In my experience, here’s the rough split on “runs but no power” complaints: about 40% are the capacitor or AVR, about 25% are a tripped breaker or GFCI, about 15% are brushes or slip rings, about 10% are the rotor or stator, and 10% are miscellaneous wiring. So the stator is rarely the answer, but when everything else tests good, it’s the next stop. If you haven’t been through the first group, start with generator runs but no power.
Which Symptoms Point to the Stator?
- Output is low (say 20 to 60 volts) even though the engine speed is right and the AVR and capacitor are known good.
- The generator worked, then lost power after an overload, a lightning event, or a burnt smell.
- You see dark, charred, or melted varnish on the windings, or smell scorched insulation.
- Output is fine with no load but collapses when you add any load.
Before you condemn the stator, check the voltage at the outlet properly using my multimeter output test and confirm the engine is at the correct speed. A generator running at idle or at the wrong RPM will mimic stator failure (see low or high voltage).
What You’ll Need to Test a Generator Stator
- A digital multimeter with an ohms range that reads down to 0.1 ohm. A cheap meter’s own lead resistance can swamp the reading, so touch the leads together first and subtract that number.
- The service manual or a wiring diagram for your model. If you can’t find one, photograph every connector before you unplug it.
- Basic hand tools to open the generator end cover: usually 10 mm and 12 mm sockets and a screwdriver.
- A flashlight and a camera phone.
Safety — quick reminders.
Shut the engine off, pull the spark plug wire, and let it sit. Even stopped, a capacitor can hold a charge. Touch the capacitor terminals together with an insulated screwdriver to discharge it before you reach in. Never test windings while the engine is running.

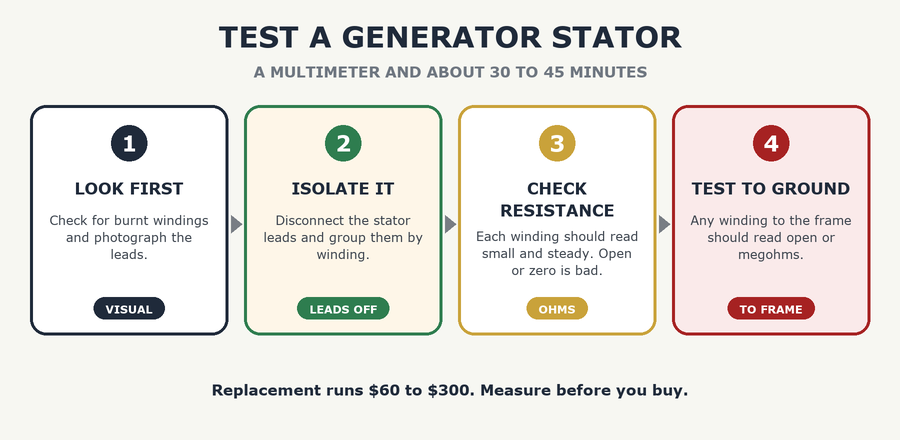

Step 1: Visual Inspection
Pull the rear cover and look at the stator windings with a flashlight. Healthy windings are shiny and uniform, usually with copper-colored or brown-orange insulation. Dark brown or black patches, a flaking crust, or a burnt-electrical smell is an overheated winding. I’d call the stator done at that point. I’ve pulled a few that looked like burnt toast. And I learned long ago in the Air Force that if a component smells scorched, the meter is just confirming what your nose already told you.
Also look for rub marks. A worn bearing can let the rotor drag against the stator, scoring the windings. If you see bright metal marks on the rotor, the bearing needs attention (see generator knocking, screeching, or rattling).
Step 2: Disconnect and Identify the Windings
- Photograph the wiring where the stator leads connect to the capacitor, AVR, outlets, and breaker.
- Unplug or unbolt the stator leads at those points. You want the stator completely isolated.
- Group the leads by color or by the pairs shown in the diagram. A typical portable has a main output winding (often two halves for 120/240 volts) and a smaller excitation or auxiliary winding that feeds the AVR or capacitor.
Step 3: Test for Continuity and Resistance
Set your meter to the lowest ohms range. Measure across each winding pair.
| Test | Good reading | Bad reading |
|---|---|---|
| Main winding, lead to lead | Very low, often a fraction of an ohm to a few ohms | Infinite (open) or zero (shorted) |
| Two halves of a 120/240 winding | Nearly equal to each other | One reads far higher or lower |
| Excitation winding | A few ohms, steady | Open or unstable reading |
| Any winding to frame (laminations) | Open, or megohms | Any measurable resistance |
Exact numbers depend on the model, so compare against the spec if you can find it. What I trust most is the comparison between windings that should match. If one half of a 240-volt winding reads half the resistance of the other half, I know something’s wrong even when I don’t have the book.
Step 4: Test for a Short to Ground
Put one probe on a clean, bare spot on the stator frame or lamination stack. Touch the other probe to each winding lead in turn. Every one should read open, or very high, in the megohm range. Any steady resistance in the hundreds of ohms or lower means insulation has failed and the winding is shorted to the frame. That’s a failed stator. It’s also a shock hazard, so don’t use the generator.
What a Basic Meter Can’t Tell You
A turn-to-turn short, where a few loops inside the same winding touch each other, barely changes the resistance and will fool a handheld meter. The symptom is weak output with a good capacitor, AVR, and rotor. At that point I stop guessing. A repair shop with an insulation tester or a growler can confirm it quickly, usually for $40 to $80. Then I compare the cost of a new stator to the cost of the whole unit. It’s the same decision I walk through in rebuild vs. replace: a $220 stator on a $350 generator is rarely worth it, but on a $1,200 inverter or a standby unit it can be.
Cost and Time
| Item | Typical cost | DIY time |
|---|---|---|
| Testing with a meter | $0 if you own one | 30 to 45 minutes |
| Stator, budget portable | $60 to $150 | 1.5 to 3 hours |
| Stator, name-brand portable | $150 to $300 | 2 to 3 hours |
| Shop test and replace | $200 to $450 | Drop-off |
Replacing a stator means pulling the generator head apart, and on most units that involves lifting the engine and rotor out of the way. Budget a full afternoon your first time. If you want to keep it simple, check the AVR, capacitor, and brushes again before you commit.
Video walkthrough
Frequently Asked Questions
How do I know if the stator or the rotor is bad?
I test both. The stator gets the ohms and ground tests above. A brush-type rotor reads a few ohms across the slip rings. Either one can cause no output, so measure instead of guessing.
Can a stator be rewound?
Yes, a motor rewind shop can do it, but it often costs as much as a new stator. I’d rewind only on an expensive or discontinued unit.
Why does the generator make power with no load but die with a load?
Often a weak capacitor or AVR, sometimes a winding with an internal short. After the first two check out, a stator problem becomes more likely.
Can lightning damage a stator?
It can, mostly if it’s connected to a house or an extension cord that took a surge. I’ve seen windings burnt through where the insulation broke down.
Is it safe to run a generator with a shorted stator?
No. A winding shorted to the frame can energize the housing. I wouldn’t run it until it’s repaired or replaced, and I’d double-check grounding on any generator I plan to keep.
