A small plug on the bottom of the carburetor bowl can make a perfectly clean carburetor act like a dirty one. Here is how the fuel shutoff solenoid works, how to test it, and when to replace it.
The 30-second answer: A generator fuel shutoff solenoid is the small plug on the bottom of the carburetor bowl that opens the main fuel path while the engine runs. If it sticks closed, the engine cranks but starves. Unscrew it, check that the pin moves freely, test the coil with a multimeter, and replace it if it’s dead. Parts run $8 to $25.
The short version
- The solenoid closes fuel off at shutdown to prevent afterfire and dribble, and opens it when the engine runs.
- A failed or gummed-up solenoid mimics a clogged carburetor jet, so people rebuild carbs they didn’t need to.
- Check three things in order: the wire, the pin, and the coil.
- Always clean the bowl while the solenoid is out. Whatever killed it is probably still in there.
What Does a Generator Fuel Shutoff Solenoid Do?
On many newer carbureted generators, including a lot of Predator, Champion, DuroMax, and Generac models, there’s a brass or steel plug screwed into the bottom of the carburetor float bowl with a single wire attached. Inside is a spring-loaded pin and an electromagnet. When the engine is running or cranking, the coil energizes, pulls the pin back, and opens the main jet’s fuel supply. When you shut the engine off, the coil releases, the pin drops, and fuel is cut instantly. The point is to stop the engine from running on after the key is off and to prevent the backfire pop on shutdown. The downside is that it’s one more small part that can gum up with ethanol varnish or fail electrically, and when it does, the engine acts exactly like it has a dirty carburetor. A bad solenoid is often mistaken for a dirty carburetor when the carburetor itself is fine.
Symptoms of a Bad Fuel Solenoid
- It cranks and cranks but never fires, even though the carb bowl is full of fuel when you check it.
- It starts only with starting fluid or with the choke closed, then dies as soon as you open the choke.
- It runs lean and surges, because the pin is only opening partway.
- It pops or backfires at shutdown, which can mean the pin is sticking open (more on backfires here).
- It keeps running for several seconds after you shut it off, or won’t quit at all (generator won’t shut off).
Notice how much of that list overlaps with an ordinary dirty carb. That overlap is why this part gets missed. My rule of thumb: if you’ve cleaned the carburetor well and the engine still acts starved, look at the solenoid before you buy a new carb.

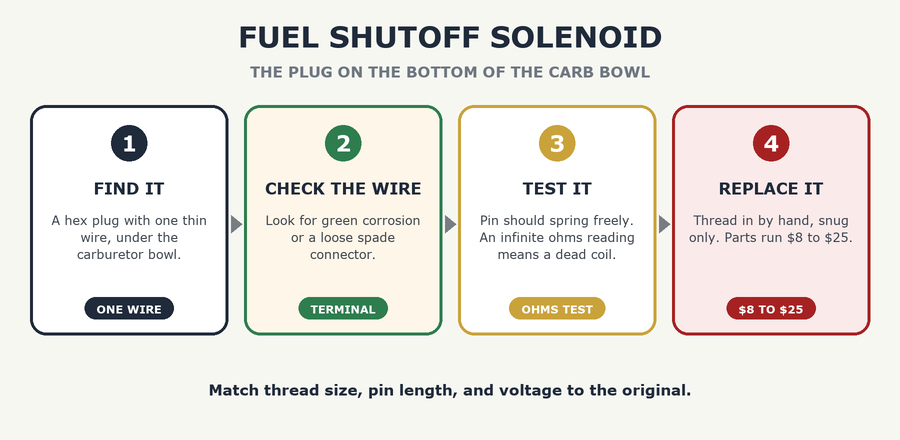

How to Find and Test It
You’ll need a 10 mm or 12 mm wrench or socket (check your model), a multimeter, a rag, and a small container. Shut the fuel valve and let the engine cool first.
- Locate the solenoid on the underside of the carburetor bowl. It looks like a hex-headed plug with one thin wire. If your carb has only a plain bolt there, you don’t have this part.
- Unplug the wire and inspect the terminal. Green corrosion or a loose spade connector accounts for a surprising share of these failures.
- Unscrew the solenoid. Fuel will drain from the bowl, so catch it.
- Look at the pin on the business end. It should push in against a spring and spring back out freely. If it’s stuck, bent, or crusted with brown varnish, that’s your problem.
- Test the coil. Set your meter to ohms and measure from the terminal to the metal body. Most of these read in the tens of ohms. An open reading (infinite) means a dead coil. A reading near zero means it’s shorted. Compare against your service manual if you can find the spec.
- If your solenoid is a 12-volt DC type, which many are, you can touch it briefly to a 12-volt battery and listen for a click and watch the pin retract. Confirm the voltage first. Don’t guess, and don’t hold it on longer than a second or two.
Safety — quick reminders.
The solenoid on some models is powered from the engine’s own charging or lighting circuit rather than a battery. A weak charging circuit can keep a good solenoid from opening. If the part tests fine, check that circuit before you buy anything.
Replacing the Generator Fuel Shutoff Solenoid
This is a 20-minute job. Budget 45 minutes your first time, because the bowl will want cleaning.
- With the solenoid out and the bowl drained, spray the passage and the bowl with carburetor cleaner and blow it dry with compressed air.
- Check the tiny jet that the pin seats into. Pass a strand of fine copper wire through it. Never use steel wire or a drill bit, which will enlarge it.
- Thread the new solenoid in by hand first, then snug it. These threads strip easily in soft brass, so stop at snug.
- Reconnect the wire, open the fuel valve, and check for leaks for a full minute before starting.
If the carburetor is badly varnished, go through cleaning the carburetor properly while you’re there. And if the bowl is too far gone, rebuild vs. replace will help you decide.
Parts and Cost
| Item | Typical cost | DIY time |
|---|---|---|
| Fuel solenoid (aftermarket) | $8 to $15 | 20 minutes |
| Fuel solenoid (OEM) | $15 to $25 | 20 minutes |
| Carburetor cleaner and jet wire | $6 to $10 | Add 15 minutes |
| Shop diagnosis and repair | $80 to $150 | Drop-off, a few days |
How to Keep It From Failing Again
Ethanol fuel leaves sticky varnish on that pin faster than anything else. Run the carburetor dry or use a stabilizer before storage, and consider ethanol-free fuel if it sits (ethanol-free gas for generators explains the trade-offs). Back in my commercial kitchen days I learned that most small controls fail from neglect, not bad design, and a solenoid is no different.
Video walkthrough
Frequently Asked Questions
Can I bypass the fuel solenoid?
I wouldn’t. Some people remove the solenoid or hold the pin open to get the engine running, but you lose the shutoff, and the engine may run on or backfire. Fix it correctly.
Is a stuck solenoid the same as a bad carburetor?
No, but the symptoms look the same. If the carb is clean and the engine still starves, I check the solenoid next.
Why does my generator only run with the choke on?
That points to a lean condition, and a sluggish solenoid pin can cause it. A restricted jet is more common, so check both. My article on generators that only run on choke covers the whole list.
How do I know if my generator has one?
Look at the bottom of the carburetor bowl. If there’s a hex plug with a wire on it, it’s a solenoid. If it’s just a bolt, it isn’t.
Can I use a universal solenoid?
Match the thread size, pin length, and voltage to your original. I’ve had good luck with aftermarket parts, but I always compare the old one side by side before I install the new one.
