A clogged fuel filter is one of the cheapest fixes in the generator world and one of the most overlooked. Here is where it hides, how to check it, and how to swap it in about 15 minutes.
The 30-second answer: If your generator idles fine but stalls or bogs the moment you plug something in, a restricted generator fuel filter is a prime suspect. Shut the fuel valve, swap the inline filter for a new $4 to $9 one with the arrow pointing toward the carburetor, and test again. It’s about a 15-minute job with a nut driver and pliers.
The short version
- A clogged filter shows up under load first, because the engine needs the most fuel exactly when you ask for the most power.
- Most portables hide two or three filtering points, not one. Check all of them.
- Test flow before you buy parts: a steady stream from the open fuel line means the filter is fine.
- Rust or sludge in the old filter means the tank needs attention too, or the new one will clog in a month.
Can a Clogged Fuel Filter Make a Generator Stall Under Load?
Yes, and it’s one of the most misdiagnosed generator problems out there. A partly blocked filter still passes enough fuel for the engine to idle, which needs very little, so the generator starts and runs happily with nothing plugged in. Add a space heater or a pump and the engine suddenly demands several times as much fuel. The restricted filter can’t keep up, the carburetor bowl drains faster than it refills, and the engine bogs, surges, or quits. When a generator “runs fine until I put a load on it,” the fuel path is a prime suspect, and the filter is the cheapest piece of that path to check. After 30-plus years of repair work, I’d rather spend $5 on a filter than an hour tearing apart a carburetor that was never the issue.
Where the Filters Hide on a Portable Generator
People look for one filter and give up when they can’t find it. I’ve found up to three on a single machine, and some budget units only have one of them. Work through these in order, tank to carburetor.
1. The screen at the tank outlet
Most steel and plastic tanks have a fine mesh screen where the fuel valve (petcock) pulls from the tank. It looks like a tiny tea strainer. Rust flakes and varnish collect here first. You usually have to drain the tank and pull the fuel valve to see it. On many Honda GX-based units, the fuel valve also has a small sediment cup you can unscrew and wipe out.
2. The inline filter
This is the little clear or translucent plastic canister spliced into the rubber hose between the fuel valve and the carburetor. Brands like Champion, DuroMax, Generac, and the Harbor Freight Predator line often include one. It’s the easiest to replace and the one most people mean when they say fuel filter.
3. The carburetor inlet screen and bowl
Many carburetors have a small screen where the fuel line enters, and the bowl itself traps debris. If this is clogged, you’re past a simple filter swap and into cleaning the carburetor.
How Do You Know It’s the Filter and Not the Carburetor?
Don’t guess. Run a two-minute flow test. Make sure the engine is cold and there are no ignition sources nearby, then take the fuel hose off at the carburetor end and point it into a clean jar. Open the fuel valve. You should see a steady, unbroken stream about as thick as a pencil lead or better. A dribble, a pulsing flow, or nothing at all points to a restriction upstream. Then pull the hose off the other side of the inline filter and test again. If flow jumps back to normal, you just proved the filter was the problem.
| Symptom | How often it’s the filter | Next check if it isn’t |
|---|---|---|
| Runs at idle, dies or bogs under load | About 50 to 60% | Bogs down under load |
| Surges or hunts at steady load | About 20% | Generator surging |
| Starts, then dies after a few minutes | About 15%, more often the gas cap vent | Gas cap vent test |
| Won’t start at all | Under 10% | Generator won’t start |

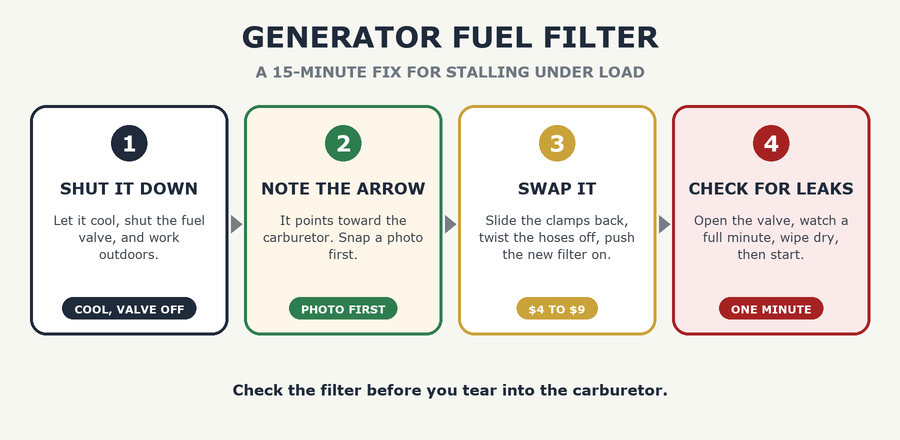

How to Replace the Inline Filter, Step by Step
You’ll need a rag, a small container, needle-nose pliers or hose-clamp pliers, and a new filter that matches your hose size. Measure your hose before you shop. Quarter-inch and 5/16-inch inside diameter are the two common sizes, and the wrong one will leak or pop off. I always buy a 3-foot length of fresh fuel line at the same time, about $4, because the old hose is usually the second thing to fail.
- Let the engine cool completely, shut the fuel valve, and move the generator outside or somewhere well ventilated.
- Put the rag and container under the filter. A little fuel will come out no matter how careful you are.
- Look at the arrow on the old filter body. It points toward the carburetor. Snap a phone photo before you touch anything so you can match the orientation.
- Pinch the clamps with the pliers and slide them back along the hose. Twist the hoses gently off the filter barbs.
- If the hose ends are hard, cracked, or swollen, cut them back an inch or replace the whole line. Hose that’s gone stiff leaks at the barb even with a fresh clamp.
- Push the new filter on with the arrow toward the carburetor, slide the clamps back over the barbs, and open the fuel valve.
- Watch for seepage for a full minute, then wipe everything dry and check again before you start the engine.
Safety — quick reminders.
Gasoline vapor ignites from a spark you’ll never see. Work outdoors, away from water heaters and pilot lights, with the engine cold. Never smoke, and never work over a hot muffler. Dispose of rags soaked in fuel by laying them flat outside to dry before they go in the trash.
What the Debris in an Old Filter Tells You
I came up as a fuel systems technician on F-16s, and in that world, fuel contamination was treated like a safety issue, not a nuisance. You didn’t wait for a filter to complain. You inspected, you documented what you found, and the debris told you where it came from. I carried that habit over to generators. When I cut open an old inline filter, I’m looking at what’s trapped. Fine black grit usually means degraded hose lining. Orange flakes mean the tank is rusting from the inside. A gummy brown film means old fuel has varnished. Each one tells me a different fix.
If I find rust, I won’t just drop in a new filter and call it done. That fresh filter will clog again within a season. The tank has to come out and get cleaned or replaced (I cover that in how to clean a rusty generator fuel tank). If it’s varnish, the carburetor is almost certainly coated too, so I plan on that cleaning while I’m in there.
Parts, Costs, and Time
| Item | Typical cost | Notes |
|---|---|---|
| Inline fuel filter | $4 to $9 | Match hose size, arrow toward carburetor |
| Fuel line, 3 feet | $3 to $6 | Use fuel-rated hose only, not clear vinyl tubing |
| Hose clamps (pack) | $3 to $5 | Spring clamps are easiest to reuse |
| Fuel valve with strainer (if needed) | $10 to $25 | Check your model’s parts diagram |
Budget 15 minutes if you’ve done it before and 30 the first time. A shop will usually charge $60 to $100 for the same generator fuel filter swap, mostly for diagnosis time.
How Often Should You Change a Generator Fuel Filter?
I change mine once a year or every 100 hours, whichever comes first, and any time the generator has sat through a season with ethanol gas in it. A cheap filter is the best insurance in the whole machine. If you want a full service plan, my generator maintenance schedule puts every interval in one place. And if a new filter and clean flow still don’t cure the stalling, move on to the fuel pump test or check the fuel valve.
Video walkthrough
Frequently Asked Questions
Can I clean and reuse an inline fuel filter?
I don’t bother. A new one is under $10 and you can’t see what’s packed inside the element. Cleaning the metal strainer in a fuel valve is fine, but the plastic inline type is a throwaway part.
Do all generators have a fuel filter?
No. Some inexpensive models only have the screen at the tank outlet and the carburetor inlet. I’ve worked on several that had no inline filter at all, and adding one is a worthwhile $6 upgrade.
Which direction does the arrow point?
Toward the carburetor, the direction fuel flows. Backwards won’t always stop the engine, but it can restrict flow and make the problem worse.
Can a bad fuel filter cause hard starting?
It can, but it’s rarer than stalling under load. If the filter is badly blocked, the carb bowl never fills, and the engine cranks without firing. I check it after spark and compression, not before.
Should I change the filter after running old gas through the generator?
I do. Old, varnished fuel leaves residue behind, and I’d rather replace a $5 filter than wonder about it all season. Drain the old gas first with the steps in how to drain old gas from a generator.
