A compression test tells you in about 15 minutes whether the engine itself is healthy, before you spend an hour chasing fuel or spark. Here is how to do it and what the numbers mean.
The 30-second answer: When fuel and spark check out but the engine won’t start or lacks power, do a generator compression test. Warm the engine, pull the plug, thread in a gauge, open the throttle, and pull the cord five to seven times. Most small generator engines read around 90 to 130 psi. Readings in the 60s or lower mean worn rings or a bad valve.
The short version
- A compression test tells you whether the engine is mechanically healthy before you spend money on carb or electrical parts.
- You can do a quick feel test with no tools. A good engine pushes back on the cord.
- Add a teaspoon of oil to separate worn rings from bad valves.
- A gauge kit costs $15 to $30 and works on every small engine you’ll ever own.
Why Does a Generator Need Good Compression?
A four-stroke engine squeezes the fuel and air mixture into a small space before the plug fires. That squeeze, the compression, is what makes the combustion strong enough to turn the crankshaft with real power. If the piston rings are worn, a valve isn’t sealing, or the head gasket leaks, some of that pressure escapes. The engine gets harder to start, loses power under load, smokes, or won’t run at all. After 30-plus years of fixing engines of all sizes, I’ve learned the same lesson over and over: don’t chase the fuel system for an hour before you’ve spent five minutes on a generator compression test. When I do see low compression on a generator, it’s usually on a machine with several hundred hours that ran low on oil at some point, or one that spent years running on neglected oil.
The No-Tools Check: Does the Cord Fight Back?
Before you buy anything, pull the recoil cord slowly. On a healthy engine, you’ll feel a clear hard spot as the piston comes up against compression, and the cord will want to bounce back. If the pull feels smooth and mushy all the way through, with no resistance to push against, compression is probably low. I use this as a first check on every generator I’m handed. It’s not exact, but it’s right far more often than not. Just keep in mind that many generators have a compression release that makes starting easier, which reduces that bounce at slow pull speeds. A fast pull will tell you more than a slow one.
What You’ll Need
- A compression gauge kit with a thread-in adapter, $15 to $30. Get one with a 14 mm adapter for most small engines and check your plug size.
- A spark plug socket, usually 13/16-inch or 5/8-inch.
- A teaspoon of clean engine oil in a small squeeze bottle.
- A rag, and about 15 minutes.

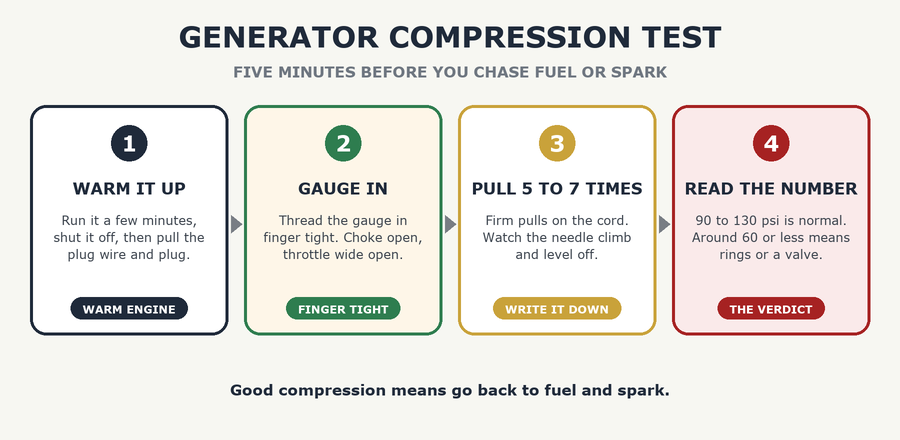

How to Do the Test, Step by Step
- Run the engine for a few minutes to warm it up, then shut it off. Warm engines give a truer reading than cold ones, because the oil film is thinner and the rings seal slightly differently.
- Pull the spark plug wire off. Then ground it away from the plug hole so it can’t spark near fuel vapor. I tape the boot to a clean bolt.
- Remove the spark plug with your socket and look at it. A wet, oily plug suggests oil is getting past the rings. A dry white plug suggests lean running.
- Thread the compression gauge adapter in finger tight, then connect the gauge. Don’t overtighten.
- Set the choke open and the throttle wide open. This lets the engine pull in full air.
- Pull the starter cord firmly five to seven times, or crank the electric start for the same number of revolutions. Watch the needle climb with each pull.
- Write down the highest reading. The needle should jump up quickly and level off. A needle that creeps up slowly and never reaches a normal number is a bad sign.
Safety — quick reminders.
Keep the plug wire grounded and well away from the open plug hole. A spark near cylinder vapor can ignite it. Don’t test compression right after the engine ran if fuel is leaking.
What Do the Numbers Mean?
Here’s how I read it. Actual specs vary by engine, so check yours if you have the manual, but these ranges have held up on the common 150 to 420 cc OHV engines in portable generators. In a healthy small OHV engine, the gauge typically reads somewhere between about 90 and 130 psi.
| Gauge reading | What it usually means | Next move |
|---|---|---|
| 90 to 130 psi | Normal for most small OHV engines | Compression is fine, go back to fuel and spark |
| 70 to 90 psi | Tired but usable, may be hard to start | Check valve lash, run fresh oil |
| Under about 60 psi | Worn rings, leaking valve, or head gasket | Do the oil test below |
| Zero or near zero | Stuck valve, broken part, or seized engine | Stop and inspect, or replace the engine |
The Oil Test: Rings or Valves?
If the reading is low, squirt about a teaspoon of clean engine oil into the cylinder through the plug hole. Let it sit for a few seconds, then repeat the test.
- Reading jumps by 15 psi or more: The oil temporarily sealed worn rings or a worn cylinder wall. That’s a ring problem.
- Reading barely changes: Oil can’t help a leaking valve or head gasket. Look at the valves, and check the clearances using valve adjustment.
That test is one of my favorite field tricks, because it needs only a teaspoon of oil. It’s a standard small-engine diagnostic, and I’ve used it on everything from pressure washers to portable generators.
What to Do After a Generator Compression Test
If compression is good, you’ve just saved yourself from tearing into an engine that doesn’t need it. Go back to the fuel and spark checklist in generator won’t start. If it’s marginal, a valve adjustment is cheap and often brings it back, and fresh oil helps the rings seal. If it’s low and the oil test says rings, you’re looking at an engine rebuild or a replacement. On a $400 portable, I almost always recommend replacing the whole generator, or at least a replacement engine, over a rebuild. On a quality unit worth $1,000 or more, a rebuild can make sense. Compare the cost with rebuild vs. replace before you decide.
Don’t forget the oil. Low oil is the main killer of small engines, so check oil pressure problems if your engine has been shutting down.
Video walkthrough
Frequently Asked Questions
Do I need to warm the engine up first?
I do, if it’ll run. A cold engine can read a few psi lower. If it won’t run, test it cold and keep that in mind when you read the number.
Can I do a compression test on an electric start generator?
Yes. Crank it with the plug out and the plug wire grounded, for the same five to seven revolutions. I disconnect the battery’s negative terminal first if the starter wires are exposed.
Why does the gauge needle drop after I stop?
Most gauges have a check valve that holds the reading. If yours doesn’t, read the needle as it peaks. I always write down the highest number rather than trusting memory.
What if the engine has an automatic compression release?
Some small engines lower compression at cranking speed to make starting easier. Readings may be lower than the numbers above. I compare to the spec, or I check a known-good engine of the same model.
Is low compression always the end of the engine?
No. A sticking valve or a worn rocker clearance can be fixed in an hour. I’ve brought several “dead” engines back by simply setting valve lash and changing the oil.
