Wet stacking is a diesel problem caused by running too lightly loaded. Here are the signs, how to clear it with a loaded run, and how to prevent it.
The 30-second answer: Diesel generator wet stacking is unburned fuel and oily carbon collecting in the exhaust because the engine runs too lightly loaded to get hot. Look for black, oily residue at the exhaust outlet. Clear it by running at 70 to 80 percent load for a couple of hours, and prevent it by keeping load above 30 to 50 percent.
The short version
- Diesel engines burn clean only when cylinders run hot, and light loads keep them cool.
- Standby generators that only get started and idled for a few minutes are the usual victims.
- Signs include black oily soot or dripping at the exhaust, heavy smoke, and lost power.
- A loaded run or a load bank test burns the residue off. Neglected cases need injector and exhaust cleaning.
What Is Diesel Generator Wet Stacking?
A diesel engine ignites its fuel by compression alone, and it needs high cylinder temperatures to burn all of it cleanly. At light load, the engine injects only a small amount of fuel and the combustion chambers never get hot enough for complete burning. The unburned fuel, mixed with lubricating oil and carbon, travels out through the exhaust and collects in the exhaust pipe, muffler, and turbocharger. That sticky black sludge, which can drip from the stack, is what gives wet stacking its name. Over time the same condition glazes the cylinder walls, so the rings can’t seat, and it coats the injectors and valves with carbon, so the engine loses power, burns oil, and smokes more. I’ll be upfront with you: most of what I fix every day are gasoline portables, and I’m not a full-time diesel genset tech. But the physics is simple, the guidance from manufacturers is consistent, and I’ve seen enough small diesel units come in with this exact problem to cover it properly.
What Causes Wet Stacking?
- Oversized generator. A generator that’s far bigger than the load it serves will never get up to temperature. This is the most common cause I see, and I tell people to check it before they pay for anything. Sizing matters (what size generator do I need).
- Testing with no load. A standby unit that’s started and idled for five minutes every week never warms up.
- Long idling. Letting it idle for hours between jobs has the same effect.
- Excess fuel or poor combustion. Worn or leaking injectors, or a bad air supply, can make it worse.
Signs of Wet Stacking
- Black, oily residue or dripping at the exhaust outlet
- Heavy black or blue-gray smoke, especially at startup or when load is added (exhaust smoke color guide)
- Oil consumption increasing
- Loss of power, slow response to load
- Carbon buildup on the exhaust, and over time glazed cylinders and sticky injectors
Don’t confuse it with other kinds of smoke. White smoke at startup in cold weather is often just unburned fuel vapor that clears as the engine warms, and blue smoke can mean the engine is burning oil for other reasons. Wet stacking leaves oily wetness, not just color.
How Much Load Does a Diesel Generator Need?
Manufacturer guidance varies, but a common rule of thumb is to avoid running a diesel generator below about 30 percent of its rated load for extended periods, and to aim for 50 to 70 percent when you can. For emergency standby systems, the fire-protection standard NFPA 110 calls for monthly exercise runs of at least 30 minutes under a load of at least 30 percent of the nameplate rating, or until the exhaust temperature reaches the level the manufacturer specifies. Check your generator’s manual, because it gives the number that applies to your engine.
| Load on the engine | What tends to happen |
|---|---|
| Under 30% for long periods | Wet stacking risk is high |
| 30 to 50% | Acceptable for exercise and short use |
| 50 to 80% | Best range for combustion and long life |
| Above 90% for long periods | Overheating and wear, no better for the engine |

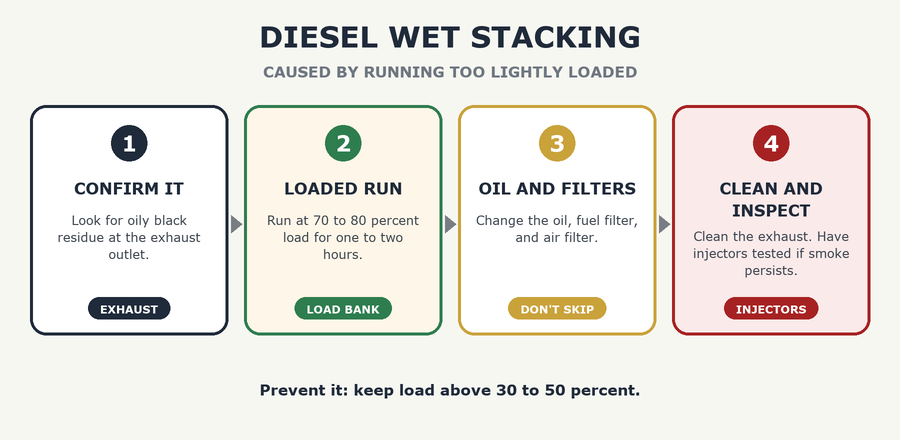

How to Fix Diesel Generator Wet Stacking
If the buildup is mild, it usually clears with the right loading. If it’s severe, you may need a shop.
- Confirm the problem. Look at the exhaust outlet for oily, wet black residue and check the oil level and condition.
- Do a loaded run. Connect a load bank, a device made to apply a controlled electrical load, or use real equipment so the generator runs at about 70 to 80 percent of its rating for one to two hours. The heat burns off a lot of the carbon and fuel residue.
- Change the oil and filters. Fuel and carbon contaminate the oil in wet-stacked engines, so don’t skip this. Replace the fuel and air filters too.
- Inspect and clean the exhaust. Clean out heavy residue from the exhaust pipe and muffler, and check the turbo if the engine has one.
- Test the injectors if smoke or power loss continues. A shop can test and clean them.
Safety — quick reminders.
Diesel exhaust carries carbon monoxide just like gasoline exhaust, and the oily residue is flammable. Work outdoors, let the exhaust cool before cleaning, and keep ignition sources away.
How to Prevent It
- Exercise under load. Run your standby generator under a meaningful load, not just at idle. Many owners use a load bank test once a year.
- Right-size the unit. If your generator is too large for your typical load, adding a dedicated steady load can help, but a smaller generator is often the better solution.
- Avoid long idling. Shut it down instead.
- Keep up with maintenance. Change oil, fuel filters, and air filters on schedule (generator maintenance schedule).
- Use good fuel. Old, water-contaminated diesel causes poor combustion.
I carry one habit over from my Air Force fuel systems work: run the logbook. Write down the date, hours, and load every time you exercise it. Patterns show up on paper long before they show up as a failed start.
Does It Matter for Standby Generators?
It matters more there than anywhere, and I think about it every time someone tells me their backup unit “only gets tested at idle.” A standby unit is expected to fire up and carry the house in a blackout, and one with years of light-load tests behind it may be sluggish, smoky, or reluctant. If yours won’t start when it counts, see standby generator won’t start during outage.
Most residential standby generators run on natural gas or propane rather than diesel, so wet stacking doesn’t apply to them. It’s a diesel problem, mostly seen in commercial units, farm sets, and some small portable diesels.
Cost and When to Call a Pro
| Item | Typical cost |
|---|---|
| Load bank rental or service, one test | $150 to $500 depending on size |
| Oil and filter change, small diesel | $60 to $200 |
| Injector testing and cleaning | $100 to $400 or more |
| Exhaust cleaning | $100 to $300 |
If the cylinders are glazed or compression is down, the fix goes beyond cleaning. A shop with diesel experience can check compression and advise whether the engine can recover. Prices vary a lot by size and region, so treat these as ballpark numbers.
Video walkthrough
Frequently Asked Questions
Can running a diesel generator at idle damage it?
Long periods at idle or very light load, yes. It leads to carbon buildup and glazed cylinders. A short warm-up at idle is fine, and that’s it.
How do I know if my generator is wet stacking or just smoky?
Look for oily wetness at the exhaust outlet and a history of light-load running. Smoke without the oily residue may have a different cause.
Can I fix wet stacking myself?
Mild cases, yes. A loaded run, an oil and filter change, and exhaust cleaning will clear it up. If smoke and power loss persist, I’d have the injectors checked, and I wouldn’t try to do that part myself.
How long should I run it under load?
Many owners run one to two hours at 70 to 80 percent to burn off buildup, but follow your manufacturer’s instructions for your engine.
Is this a problem with gasoline generators?
No. Wet stacking is specific to diesel combustion. A gasoline generator’s equivalent problems are carbon fouling and a rich-running carburetor (generator runs rough).
